CARDBOARD PACKAGING MOLD KNIVES

CARDBOARD PACKAGING MOLD KNIVES

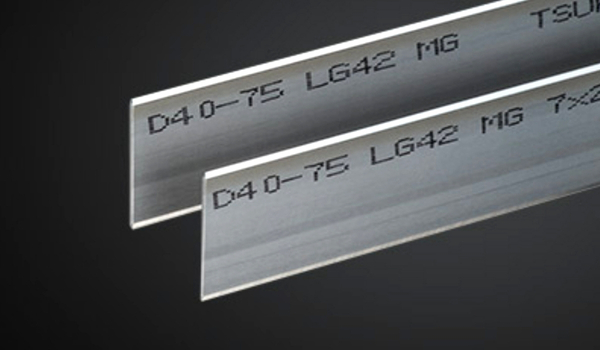

Flat Die Cutting Blade

Double Blade
Single-Edged Blade
Two-Stage Blade
Single-Edged Blade
Single-Edged Double-Stage Blade

Depending on the drilling base material and purpose, we have prepared a variety of cutters that are best suited to different base materials, from hard and extremely durable to extremely soft and highly pliable.

Shape of Flat Die Cutter

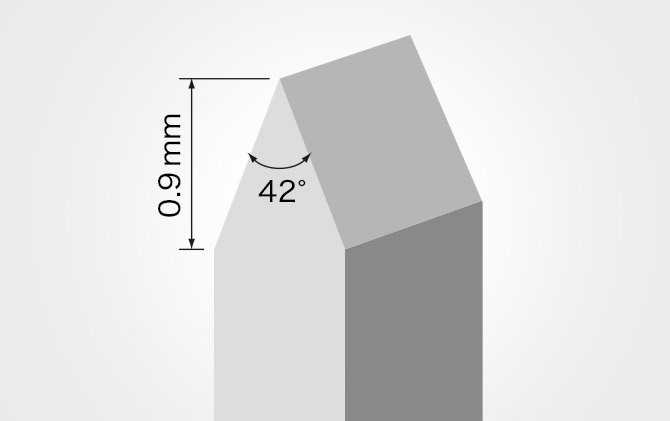

Double edge 42°

Double-sided, blade angle 42 degrees. The most standard shape.

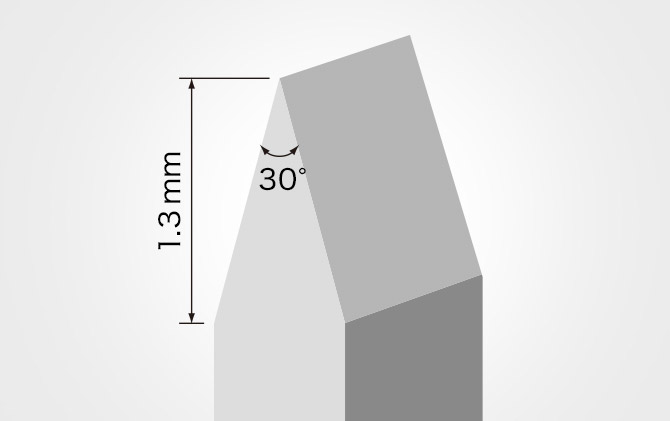

Double-edged 30° blade
A double-edged blade with a 30-degree blade angle. Used on surfaces requiring sharpness, such as special films.

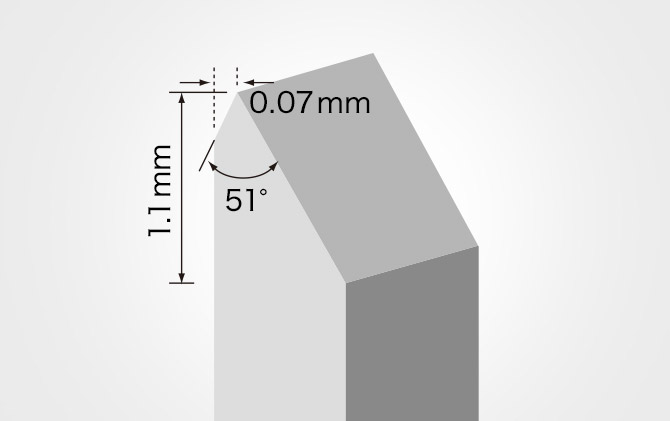

Single-sided

blade with a 51-degree angle. Used for straight cuts on outer diameters and cutting materials such as gaskets, seals, etc.

Single-sided, two-stage blade
A single-edged, two-stage blade with a 51-degree blade angle. Same as the single-edged blade, used for straight cuts, deburring, etc.

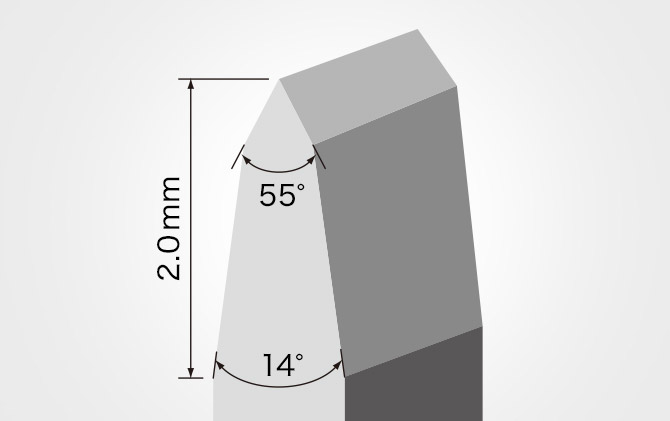

Two-stage blade
A two-stage blade shape with a 55-degree blade angle. It emphasizes durability and is used for materials of a certain thickness, such as synthetic paper.
